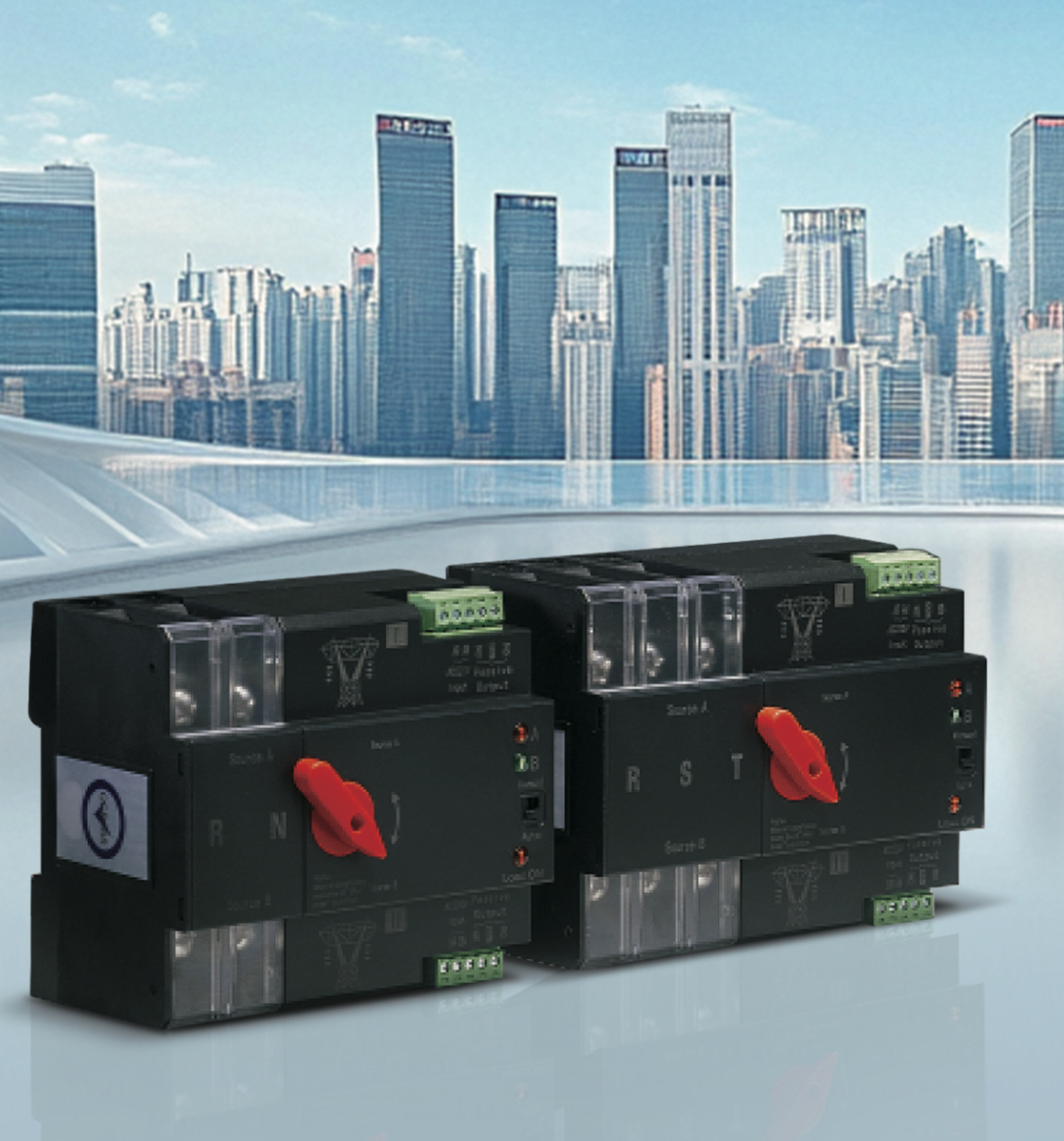

ATS Three phase
₨8,500
price per unit
Basic Technical Parameters
Insulation Voltage – AC690V,50Hz
Rated Operational Voltage – AC400V,50Hz
PC Class: Equipment manufactured to withstand short-circuit
current without failure.
Weight (kg) – 1.7
Electrical Endurance: 2,000 operations
Mechanical Endurance: 5,000 operations
Rated Short-Circuit Current- 50kA
Short-Circuit Protection Device – RT16-100A
Rated Impulse Withstand Voltage
8kA
Control Circuit
Rated control voltage US: AC 220V, 50Hz
Normal operating conditions: 85% Us – 110% Us
Auxiliary Circuit
One relay, each with two sets of contact converter contacts
Contact capacity: AC 220V 50Hz, Iₑ = 5A
Contactor Transfer Time ＜50ms
Transfer to Backup Time＜50ms
Retransfer to Main Time＜50ms
Power-Off Delay Time＜50ms
